Principais Especificações
Processor | Intel® 9th Generation Xeon E-2276ML 2.0GHz Six Core / Core i7-9850HL 1.9GHz Six Core |
Chipset | CM246 (for Xeon) / QM370(for Core i7) |
System Memory | ECC (for Xeon) / Non-ECC (for Core i7) DDR4 SODIMM up to 64GB |
Expansion | PCI Express[x16] x1, PCI Express[x4] x1, PCI Express[x1] x1 |
Storage Disk Drive | 2.5” SATA Hard Disk Drive/Solid State Disk Drive x2 |
Security | Trusted Platform Module 2.0 |
Wireless Communication | 802.11ac/a/b/g/n, Bluetooth V4.1/ 5 |
Speaker | 5W x 2 |
Function Key | Power On/Off, LCD,Brightness Up/Down, Touch Screen On/Off |
Power Requirement | 100~240V AC |
OS Support | Windows® 10, Linux® |
Ecrã
Size | 24” LCD |
Resolution | 1920 x 1080 |
Luminance | 400 nits |
View Angle | 178˚(H)/178˚(V) |
Contrast Ratio | 1000:1 |
Back Light Life Time | 30,000 Hours |
Touch Screen | Capacitive Multi-Touch |

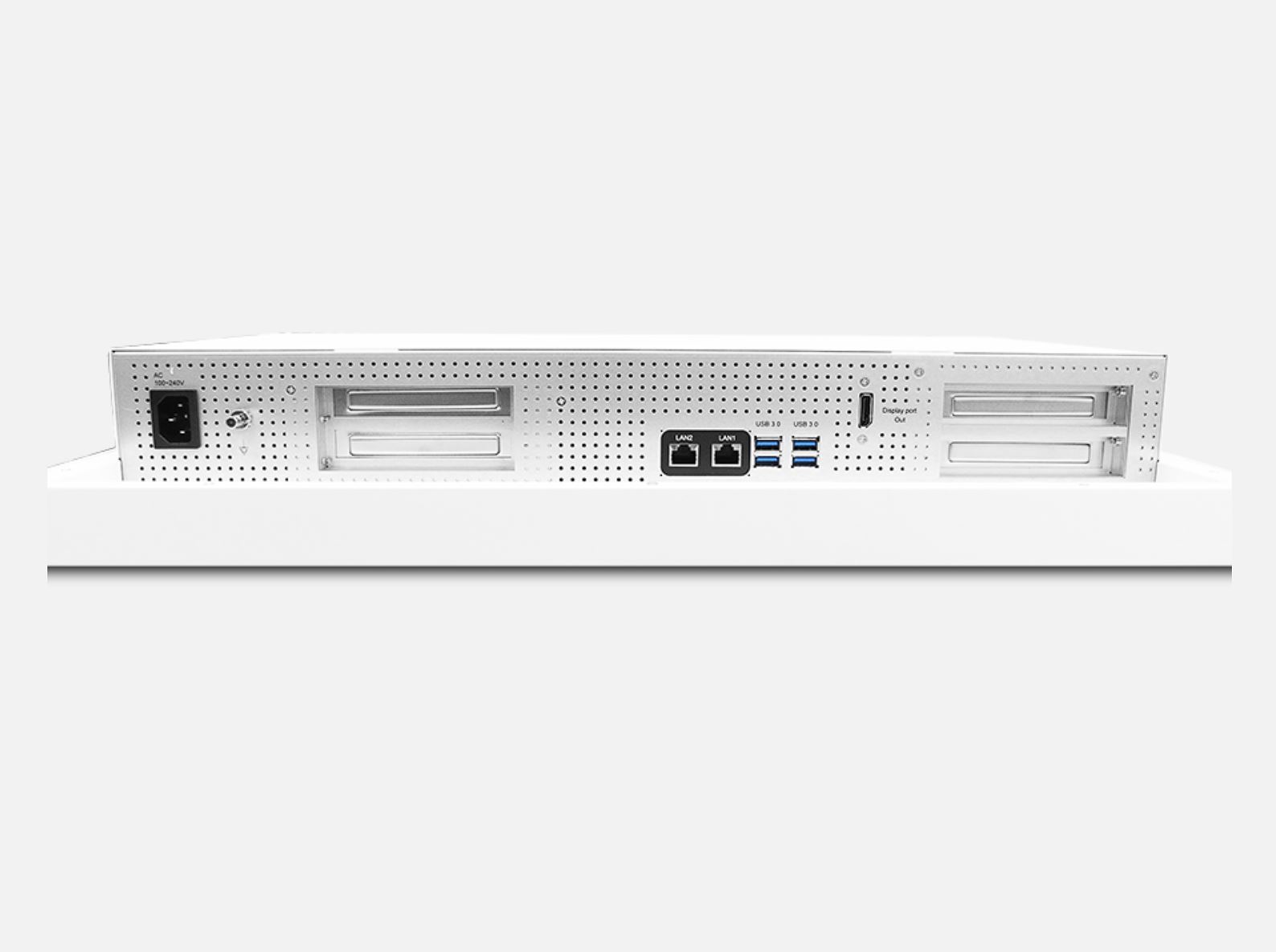

Entradas e Saídas
USB | USB 3.0 x 4 |
Serial Port | Isolated RS-232 x2(optional) |
Ethernet | Isolated Gigabit LAN x2 |
Audio | Mic(optional), Line out(optional) |
Video Out | Display Port 1.4 x1 |
Condições Mecânicas e Ambientais
Power Consumption | Full loading : 75 Watts |
Operating Temperature | 0°C ~35°C( 32°F ~95°F) |
Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
Mounting | VESA 100mm |
Degree of protection | IP65 in the front, IPX1 in the back |
Dimension | 595 x 387 x 95 mm |
Package Size | 764 x 240 x 534 mm |
Gross Weight | 14 kg (30.9 lb) |
Net Weight | 11 Kg (24.3 lb) |
Certifications | CE: EN 60601-1-2: 2015 + A1: 2021 (V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE), IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021(V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) (V3.2) |
