Principais Especificações
| Processor | Intel® 13th generation Core I Processor |
| System Memory | Supports DDR4 3200 SO-DIMM x 2 up to 64GB |
| OS Support | Windows® 10 and 11, Linux (optional) |
| Storage Disk Drive | 2.5” SATA SSD x 1 |
| Storage | M.2 M Key PCIe SSD x 2 |
| Security | TPM 2.0 |
| Speaker (Optional) | Built in Speaker |

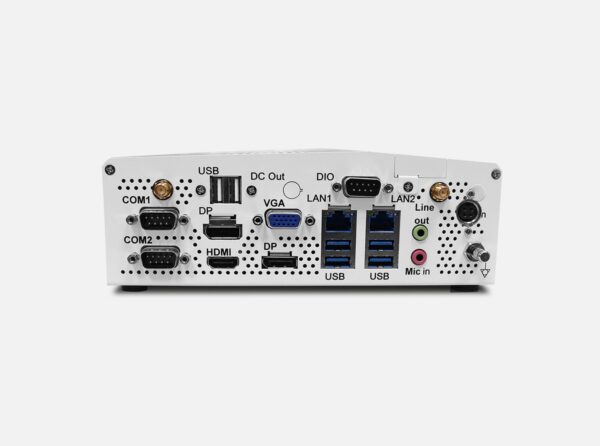

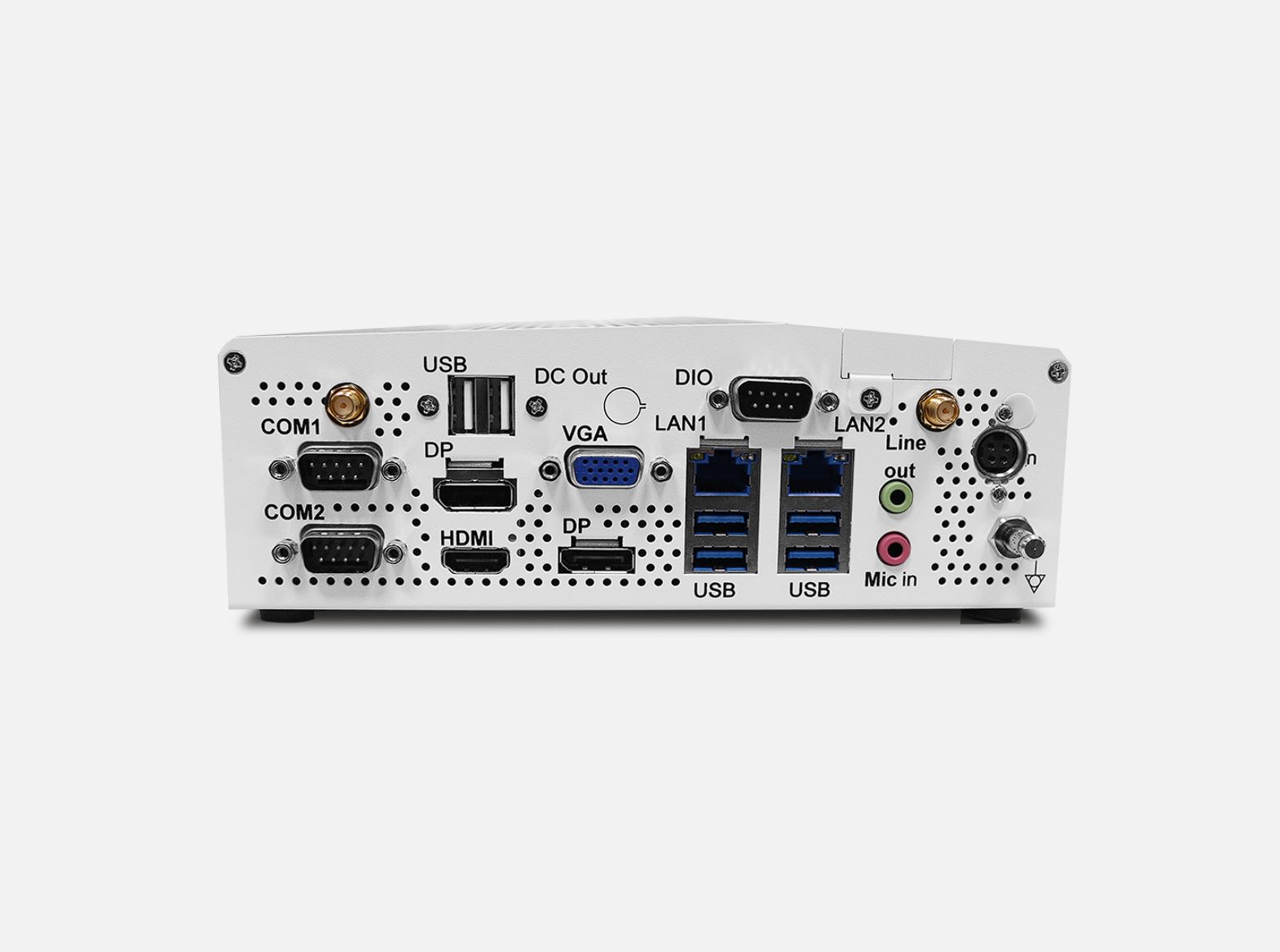

Entradas e Saídas
| USB | USB 3.2 Gen 2 x 4, USB 2.0 x 2 |
| Serial Port | RS-232 x 2 |
| Display output | DP 1.4 x 2, HDMI 2.0 x 1, VGA x 1 |
| Ethernet | Gigabit LAN x 2 |
| Video Out | Display Port x 1 (Support up to 1920 x 1200 @60 Hz) , HDMI 1.4 x 1 |
| Audio | Mic-in x 1 and Line-out x 1 |
| Functional Ports | Grounding Pin x 1, 12V DC Output(optional), COM Port for GPIO |
| Extension Area | M.2 E Key 2230 x 1 for Wireless module, PCIe 3.0[x16] x1 (Optional) |
Condições Mecânicas e Ambientais
| Power Consumption | 100V to 240V AC Input, 500W |
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension | 200 x 200 x 67 mm |
| Package Size | TBD |
| Gross weight | TBD |
| Net Weight | TBD |
| Certifications | CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) |
