ESPECIFICAÇÕES TÉCNICAS
ECRÃ
- Diagonal Size: 85″
- Panel Type: VA
- Resolution: 3,840 x 2,160
- Pixel Pitch (HxV): 0.4875(H) x 0.4875(W) mm
- Brightness (Typ): 350cd/m2 (w/o glass), 220cd/m2 (w/glass)
- Contrast Ratio: 4000:1(without glass)
- Viewing Angle (Horizontal/Vertical): 178/178
- Response Time: 8ms
- Colour Gamut: 72%
- Glass Haze: 2%(without glass)
- H-Scanning Frequency: 30~81 khz
- Maximum Pixel Frequency: 594Mhz
- V-Scanning Frequency: 48~75 Khz
- Operation Time Support: 16/7

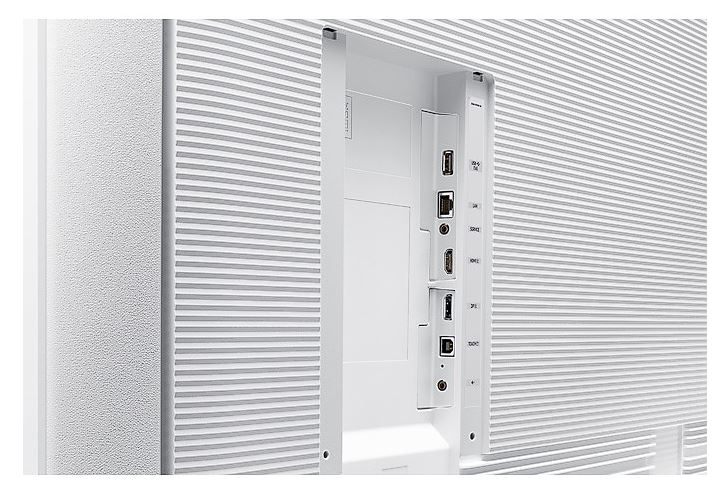

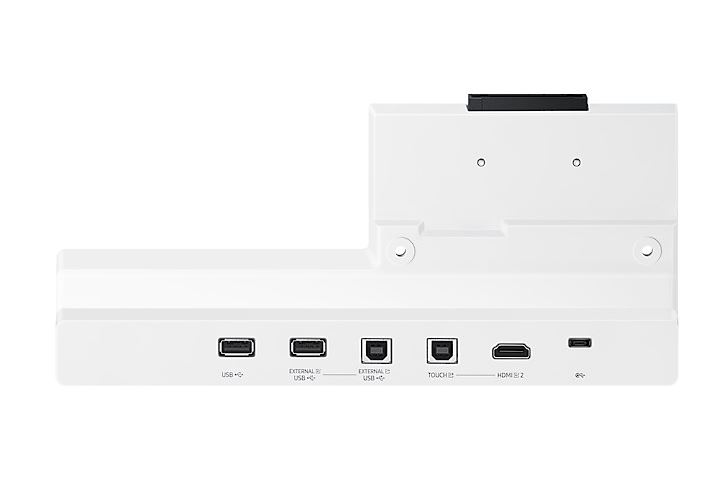

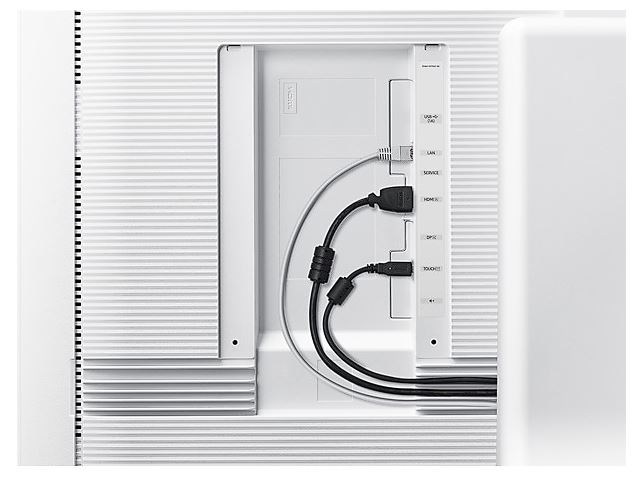

CONETIVIDADE
- HDMI In: 2
- DP In: 1
- Version of HDMI: 2
- Version of DP: 1.2
- Version of HDCP: 2.2

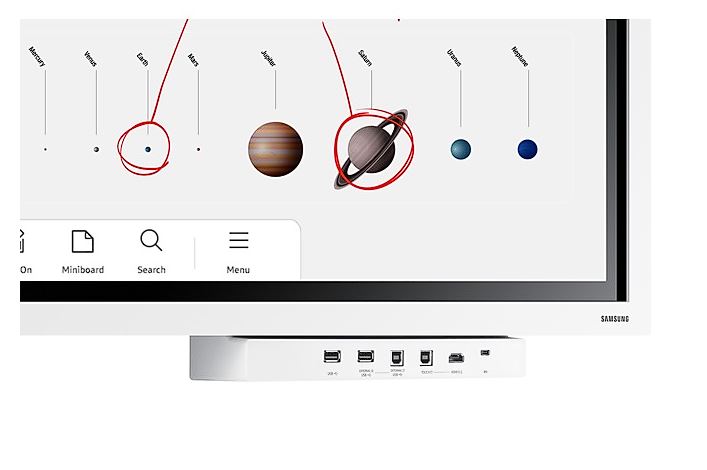

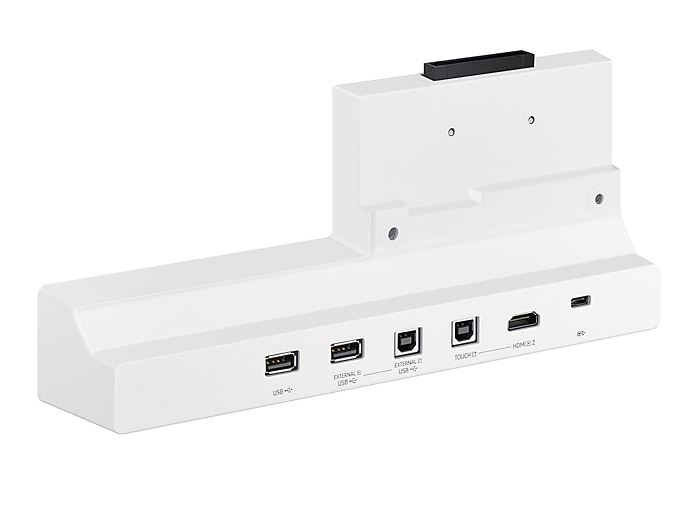

- USB:4 (A type : Front 2, Rear 1, C Type : Front 1)
- Audio Out: Stereo Mini Jack
- RS232 In: Yes
- RJ45 In: Yes
- WiFi: Yes
- Bluetooth: Yes
ALIMENTAÇÃO
- Power Supply: AC100-240V 50/60Hz
- Power Consumption (On Mode): 528W(100-240V), 506W(220-240V), OPS(16V/4.5A)
- Power Consumption (Sleep Mode): 0.5W
DIMENSÕES
- Set Dimension (WxHxD): 1945.8 x 1151.1 x 89 mm
- Package Dimension (WxHxD): 2136 x 1318 x 260 mm
PESO
- Set Weight: 75.2 kg
- Package Weight: 91.6 kg
CONDIÇÕES DE OPEAÇÃO
- Temperature: 0℃~40℃
- Humidity: 10 ~ 80%, non-condensing
ESPECIFICAÇÕES MECÂNICAS

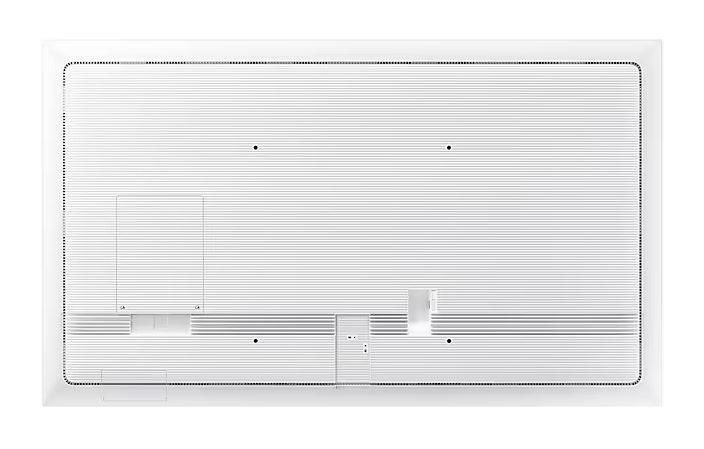

- VESA Mount: 600 x 400 mm
- Bezel Width: 20.4mm(T/LR), 44.7mm(B)
- Frame Material: Metal(Aluminum)
CARACTERÍSTICAS OPCIONAIS
- Touch: Yes

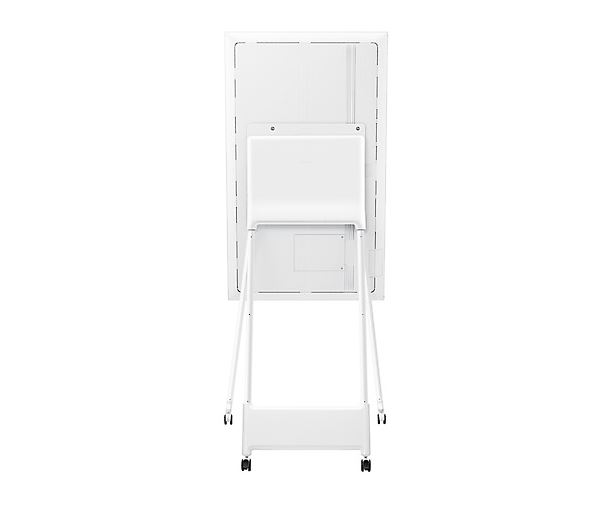

- Mount: Yes (Model Name: WMN8200SF)
SoC
- OS Version: Tizen 6.5
- Flash Memory Size: 32GB
TOUCH
- Touch Technology: IR
CERTIFICAÇÕES E NORMAS
- EMCClass A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005
- SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
