Interfaces

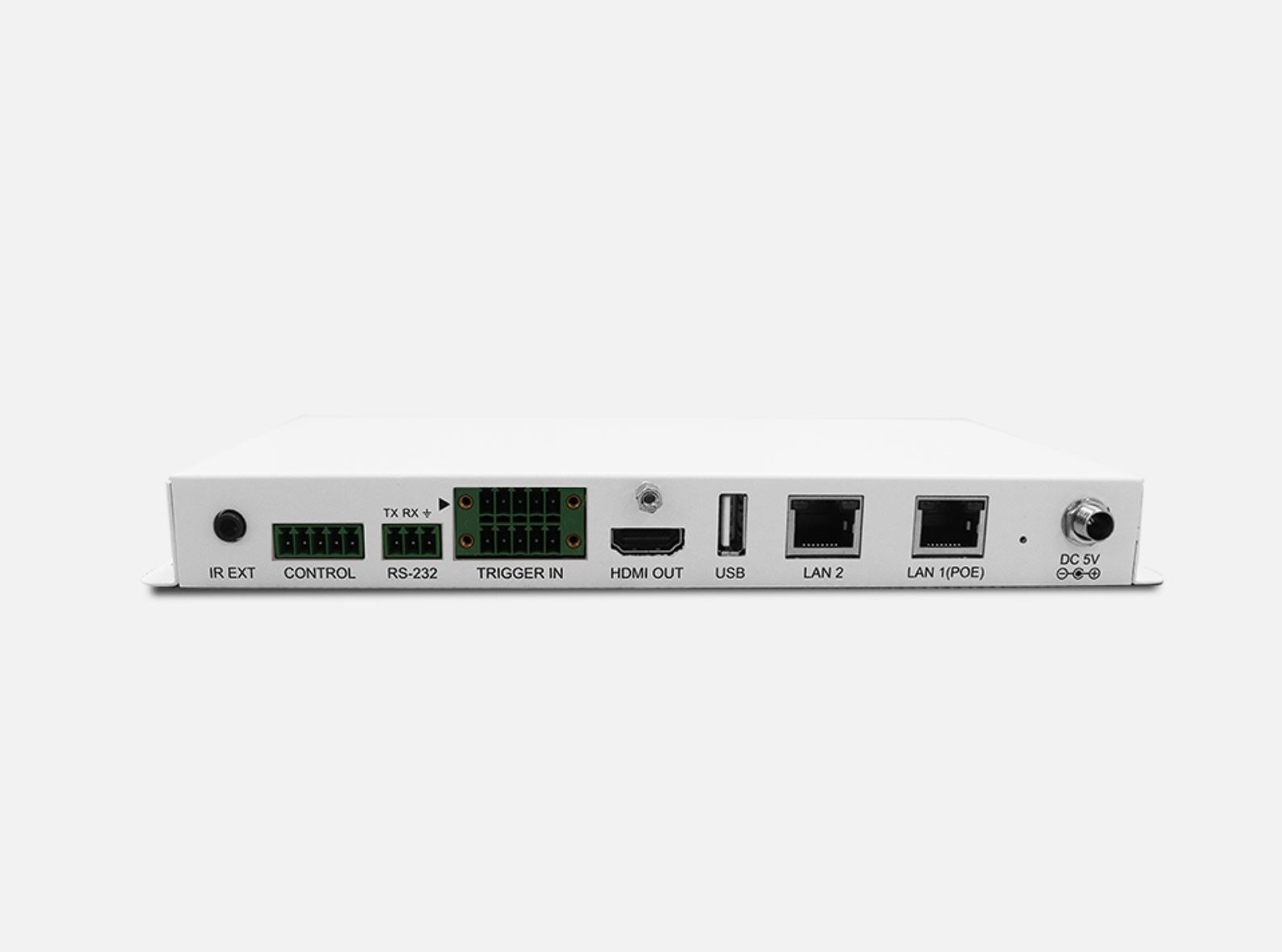

| Output Port | 1 x HDMI |
| Control I/O | 1 x IR Extender (3.5mm) 1 x RS-232 (3-pin Terminal Block) 8 x Trigger (10-pin Terminal Block) 1 x USB (Type-A) 2 x LAN (RJ-45) |
| Reserved Port | 1 x RS-232 (5-pin Terminal Block) |
Video
| Maximum Output | HDMI |
Resolução
| Maximum Output | 1920 x 1080p@60 |
Consumo
| Power Supply | 5V/2.6A DC (Locking) |
| Power Consumption | 2.99W |
Material, Peso e Dimensões
| Chassis Material | Metal (Steel) |
| Chassis Color | White |
| Dimensions (W×H×D) | 231.5 × 25 ×108 mm (Case Only) 231.5 x 25 x 117 mm (All-Inclusive) |
| Weight | 250g |
| Packing Size | 280 x 180 x 71 mm |
| Certification | CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class A |
