Principais Especificações
| Processor | Intel® 9th generation Core I/Xeon Processor |
| Chipset | Intel® C246A |
| System Memory | Supports ECC/Non-ECC DDR4 2133 DIMM x 4 up to 64GB |
| OS Support | Windows® 10 , Windows® 11 , Linux (optional) |
| Storage Disk Drive | 2.5″ SATA SSD x 2, M.2 2280 M Key SSD x 1 (NVMe or SATA SSD) |
| TPM | 2.0 |
| Speaker (Optional) | Built in Speaker |
| CD DVD(Optional) | SATA DVD+/-RW White Color |
Entradas e Saídas

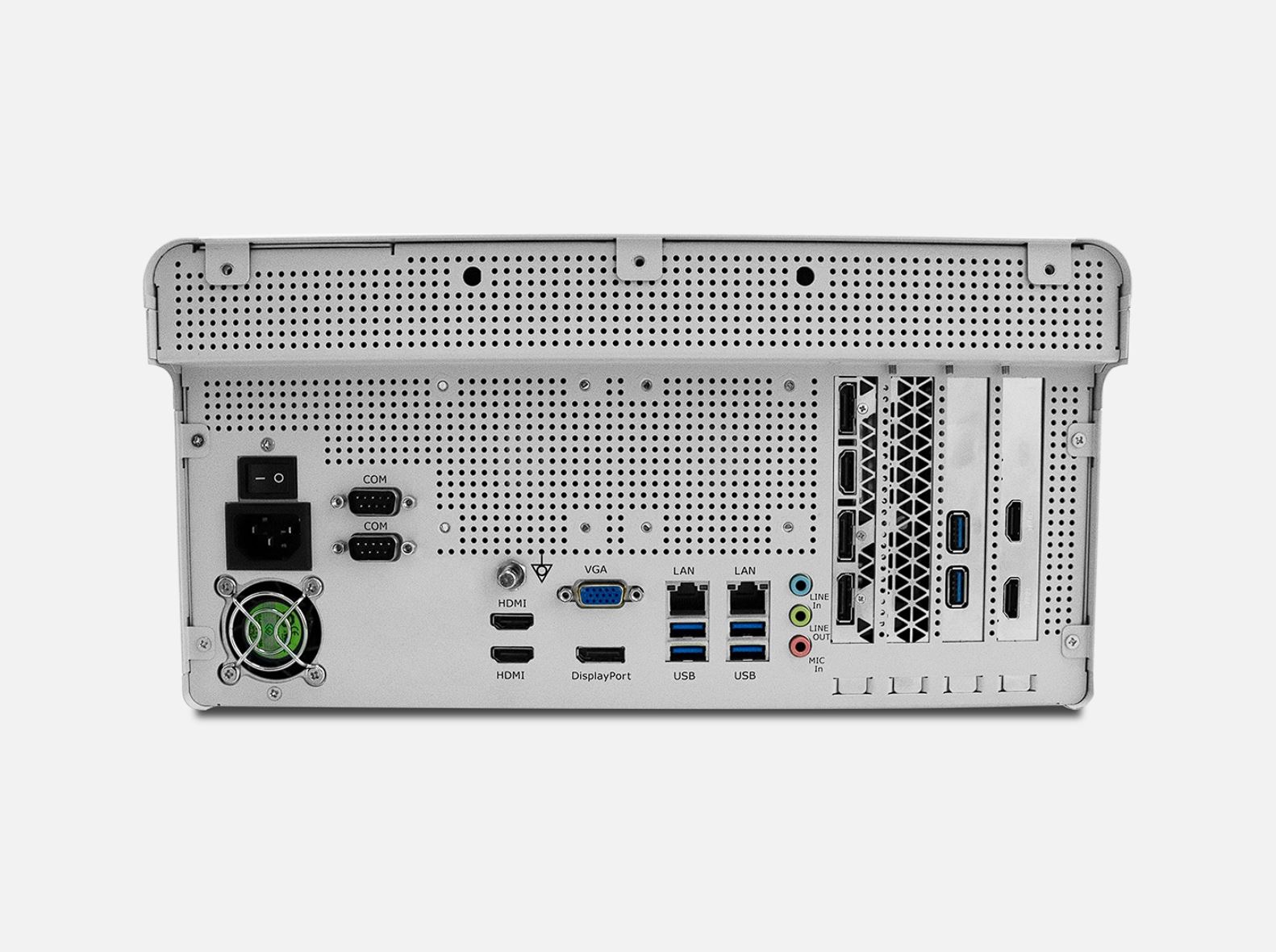

| USB | Rear USB 3.1 Gen 1 x 4 Front USB 2.0 or USB 3.0(Optonal) Rear USB 3.1 Gen 2 x 6(Optional) |
| Ethernet | Gigabit LAN x 2 |
| Audio | Line-in x 1, Mic-in x 1 and Line-out x 1 |
| Series Ports | RS-232 x 2 |
| Extension area | M.2 E Key 2230 x 1 for Wireless module PCIe 3.0[x16] x1, PCIe 3.0 [x4] x2, PCIe 3.0 [x1] x 1 |
| Optional Capture I/O | 4Kp60: HDMI 2.0 in FHD: HDMI x1, DVI-I x 1, YPbPr x1, SDI x1, CVBS x 1, S-Video x 1 |
Condições Mecânicas e Ambientais
| Power Consumption | 100V to 240V AC Input, 500W |
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension | 330 x 168 x 357.4 mm |
| Package Size | 566 x 290 x 480 mm |
| Gross Weight | 10 kg |
| Net Weight | 8 kg |
| Certifications | CE: EN 60601-1-2: 2015 + A1: 2021 (V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/ A2:2021(V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) (V3.2) |
