Principais Especificações
| Output Voltage | 12/19/24V (can be selected only one voltage) |
| Output Capacity | 90W mini-din 4pin x1; 10W USB Type A x1 (power output only) *check user manual for more detail info |
| Battery Charge Time | 3hrs for standard battery; 3.5hrs for XL battery; 4.5hrs for XXL battery |
| Input Power | 24V Medical adaptor |
| Protection | Supports protection from over-voltage (input), overcurrent (input and output), short circuit, over-charge |

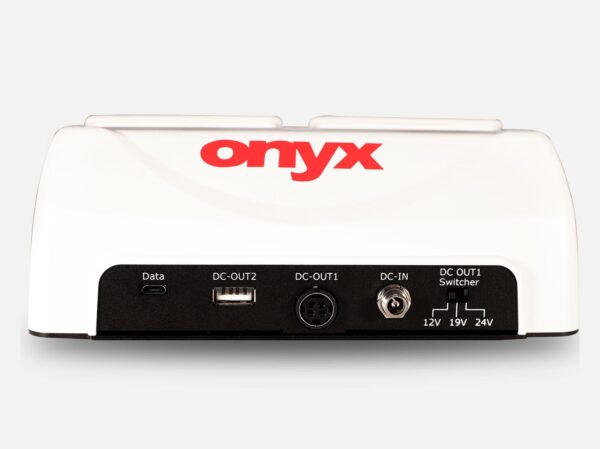

| IO interface | Mini-din 4pin x1; USB Type A x1 (Power output only); USB micro-B x1(Data transport only); DC-in |
| Certification | CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/ A1:2013(V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
Condições Mecânicas e Ambientais
| Architecture | ABS + PC |
| Color | White |
| Dimension | 191(L) x 64(W) x 117(H) mm |
| Net Weight | 0.67kg (1.47 lbs) |
| Packing Size | 390(L) x 290(W) x 110(H) mm |
| Gross Weight | 2kg (4.41 lbs) |
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Storage Humidity | 10%~95%@35°C, non-condensing |

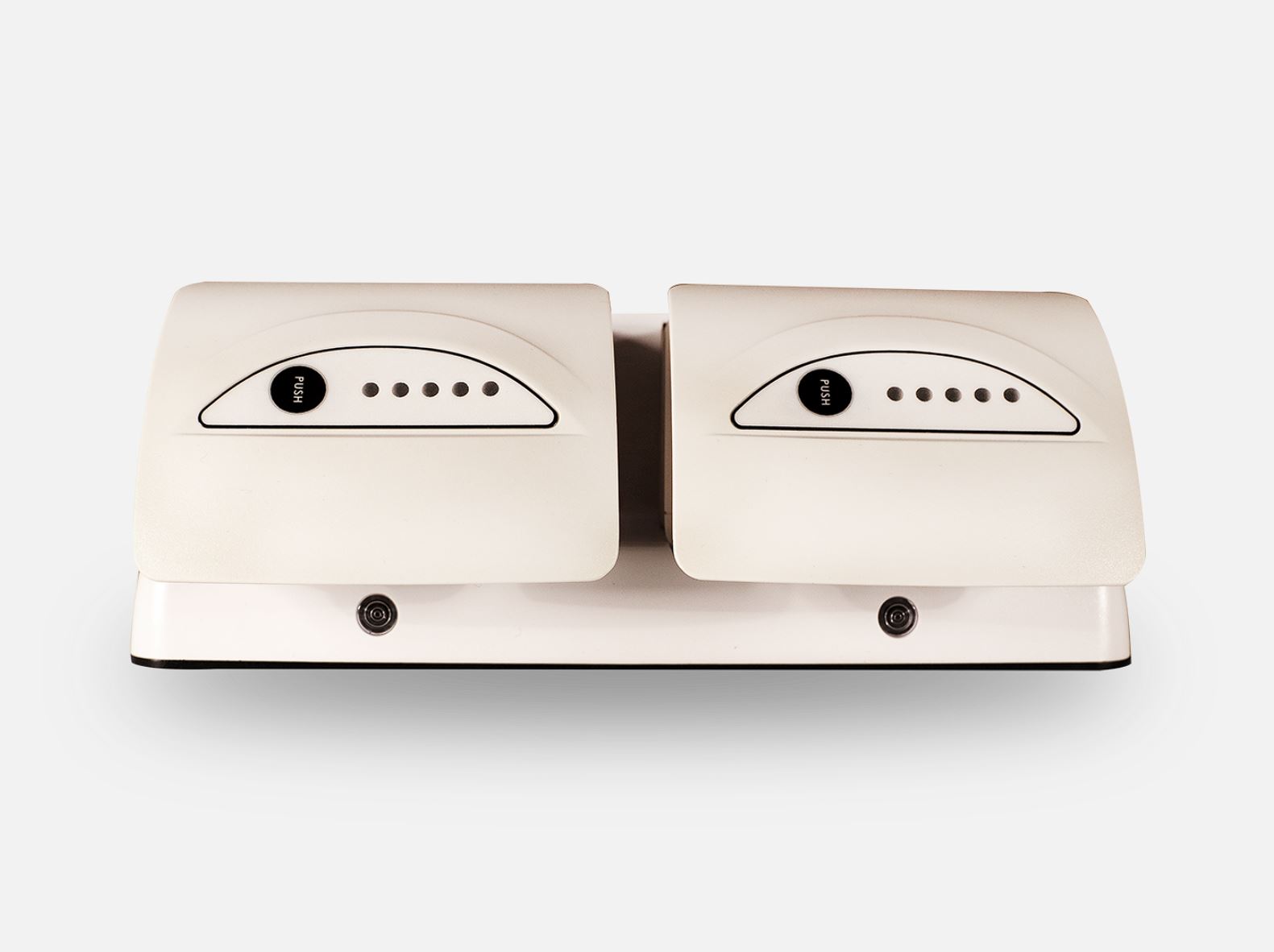

Indicador LED da bateria
| Blue Lighting | Full Charge (AC mode) |
| Blue Flashing | Charging (AC mode) |
| Green Lighting | Capacity 16%~100% (Battery mode) |
| Orange Lighting | Capacity 8%~15% (Battery mode) |
| Purple Lighting | Capacity 0%~7% (Battery mode) |
| Green-Purple Flashing | Charging error |
Alimentação
| Input Voltage | 100-240V AC @50-60 Hz |
| Output Power | 24V / 6.25A |
Baterias (opcional)
| Battery Type | 6 / 9 / 12 Cell Lithium-ion battery |
| Battery Capacity | 5700 / 8550 /12060 mAh |
| Output Voltage | 10.8 / 10.95 / 10.8 V |
